Mechanical Scales

Mechanical Scale
NSF Mechanical Scale

CW(N) Series

  • Designed for check weighing, general weighing, portion control, and batching
  • NSF certified
  • Available capacities: 1000 grams, 2 pounds, and 5 pounds
  • Air dashpot included for faster readings
  • Color-coded, rotating chart for setting portion weight and tolerance guide zones
  • 30-degree tilted dial for easy reading
  • Zero-setting mechanism and fine-point indicator for accuracy
  • Removable stainless-steel platform for easy cleaning
  • Available options: 4.2-quart stainless bowl, 2.5-quart stainless flat bowl, carrying handle

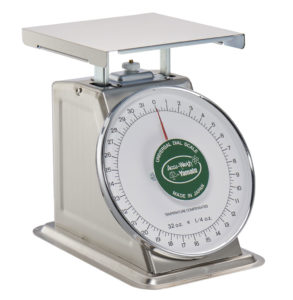

SM Series Mechanical Scale
NSF Mechanical Scale

SM(N) Series

  • Designed for portion control and batching
  • NSF certified
  • Stainless-steel construction
  • Available capacities: 32 ounces, 5 to 50 pounds, 800 grams, 4 kilograms, and 12 kilograms
  • 30-degree tilted dial for easy reading
  • Zero-setting mechanism and fine-point indicator for accuracy
  • Removable stainless-steel platform for easy cleaning
  • Available options: 4.2-quart stainless bowl, 2.5-quart stainless flat bowl, carrying handle, air dashpot
SM Mechanical Scale
NSF Mechanical Scale

SM(N) C/P Series

  • Designed for portion control and batching
  • 4.2-quart or 2.5-quart bowl must be permanently fixed to the circular platform to use the scale properly
  • NSF certified
  • Stainless-steel construction
  • Available capacities: 32 ounces, 5 to 50 pounds, 800 grams, 4 kilograms, and 12 kilograms
  • 30-degree tilted dial for easy reading
  • Zero-setting mechanism and fine-point indicator for accuracy
  • Available options: 4.2-quart stainless bowl, 2.5-quart stainless flat bowl, carrying handle, air dashpot
M Mechanical Scale

M Series

  • Designed for general weighing
  • Painted, mild-steel construction
  • Available capacities: 32 ounces, 5 to 50 pounds, 800 grams, 4 kilograms, and 12 kilograms
  • Heavy-duty capacities available: 70, 75, 100, and 150 pounds
  • 30-degree tilted dial for easy reading
  • Zero-setting mechanism and fine-point indicator for accuracy
  • Removable stainless-steel platform for easy cleaning
  • Available options: 4.2-quart stainless bowl, 2.5-quart stainless flat bowl, carrying handle, air dashpot
M Mechanical Scales

M C/P Series

  • Designed for general weighing
  • 4.2-quart or 2.5-quart bowl must be permanently fixed to the circular platform to use the scale properly
  • Painted, mild-steel construction
  • Available capacities: 10, 20, 25, 30, 40, 50 pounds, 4 kilograms and 12 kilograms
  • 30-degree tilted dial for easy reading
  • Zero-setting mechanism and fine-point indicator for accuracy
  • Available options: 4.2-quart stainless bowl, 2.5-quart stainless flat bowl, carrying handle
Sky Mechanical Scale

SKY Series

  • Designed for portion control and recipe formulation
  • Stainless-steel construction
  • Available capacities: 35 ounces (1 kilogram), 4 pounds (2 kilograms), and 6.6 pounds (3 kilograms)
  • Rotating chart for quick taring
  • Shatterproof plastic dial with 30-degree tilt for easy reading
  • Zero-setting mechanism and fine-point indicator for accuracy
BC Mechanical Scale

BC-10 Scale

  • Designed for inventory control and inventory verification
  • Available capacities: 64 fluid ounces
  • Color-coded rotating chart for distilled spirits, cordials, and liqueurs
  • Air dashpot included for faster readings
  • Temperature-compensated spring mechanism for accuracy
  • 30-degree tilted dial for easy reading
  • Zero-setting mechanism and fine-point indicator for accuracy
  • Removable stainless-steel platform for easy cleaning
  • Available options: carrying handle

Tubular Series

  • Designed for quality control
  • Available capacities: 4, 10, 20, and 50 pounds
  • Calibrated with certified weights
  • Easy-to-use, adjustable knob for quick taring
  • Accurate +/- 1 graduation
  • Rustproof
  • Zero-setting mechanism
